Super B Andrena 12V2.5Ah Light weight Lithium Ion starter battery (previously known as Super B B2600 SB12V2600P-AC )
The
Super B Andrena 12V2.5Ah Li-ion battery contians a very high capacity and has lightweight (just 475 gram / 1.05 lb, about 80% weight reduction). The 13.2 V, 2600 mAh
Lithium SuperB Andrena 12V2.5Ah battery has a long life span and low self-discharge. The dimensions of the
Super B Andrena 12V2.5Ah battery are only 114 x 35 x 84 mm (LxWxH).
PLEASE NOTE: The capacity is relatively higher than a lead battery with the same capacity. This newly developed
Super B battery Andrena 12V2.5Ah is designed to replace the much heavier 5 to 7 Ah lead/acid battery.
This battery can be inplemented in the following vehicles:
- MOTO 2.
- Karting.
- KTM, Yamaha, Husqvarna 250cc 4 stroke, all models.
- KTM, Yamaha, Husqvarna 450cc, 4 stroke with kickstart, all models.
- Enduro motorcycles up to 450cc 4 stroke.
- Up to 1500cc 4 stroke, at ambient temperature of 50 ° F / 10 ° C and higher.
This newly developed Super B battery is designed to replace the much heavier 5 to 7 Ah lead/acid battery.
The super B 2600 is based on the safe Lithium Iron Phosphate technology (LiFePO4), better known as Lithium Ion.
The super B 2600 delivers up to 150 Cranking Amps, or 50 Amps continuously.
The super B 2600 offers many advantages over conventional 5 to 7 Ah lead/acid batteries:
weighs less: as much as 80% weight saving; 1.05 lb / 475 grams;
recharges many times faster: within 5 minutes after starting your engine the battery will be recharged;
is much smaller: 1/3 or less of the space; 4.49 inch, 3.20 inch, 1.38 inch (WxHxD) / 114mm x 81.25mm x 35mm (LxWxH);
has a longer service life: more than 5 years instead of 2 to 3 years;
has a low self-discharge rate.
Safety
super B batteries are based on Lithium Iron Phosphate technology (LiFePO4). This so called Lithium Ion technology as used in the super B batteries is the safest Lithium Ion technology today. On top of that our specially designed casing and electronics further increase safety and durability.
Capacity
super B 2600 refers to 2.6 Ah (Amps/Hour), which represents the real nominal capacity under maximum continuous load. How different this is from lead / acid batteries where manufactures provide a 20 hour rating. For example the 7 Ah lead / acid batterie can be discharged over a period of 20 hours with a 0.35 Amp load. This is not very practical, as the same 7 Ah battery discharged with a 2,5 Amp load, for example a 25 Watt light bulb, will yield no more than 1.4 Ah of energy. The lead-acid battery, therefore, has less capacity when the load increases, which means that you can start more often with the super B.
Starting Current
We use a 10-second rating instead of CCA for the super B 2600 battery. The 10-second rating is easy to understand: it represents the amount of current a battery can produce during 10 seconds without being damaged. The super B 2600 can deliver a current of 150 Amps during 10 seconds. The batteries can deliver higher currents for shorter periods and lower currents for longer periods.
Charging
The super B 2600 battery can be charged with almost all motorbikes, up to a maximum of 14.4 Volts. Do not overcharge, as this will damage the battery. The super B charges much faster than conventional batteries: charging a lead- acid battery takes 7 to 14 hours, during which the internal resistance increases and the charge current decreases. The super B 2600 can be charged within 1 hour at a charge current of 2.5 Amps. If the charge current is increased to 5 Amps, it will charge in 30 minutes. Do not charge the battery with more than 10 Amps as this will damage the battery.
Charger
We recommend to use the appropriate super B charger to charge super B batteries. Do not use a lead-acid charger, as these chargers are optimized for a different battery technology and make use of methods for charging and safeguarding which are unsuitable for super B batteries.
Lifespan
Over 5 years.
Connecting the battery
The super B 2600 battery is designed with M5 screw terminals, this makes it easy to replace the stock lead-acid battery. The super B 2600 battery is shipped with two M5 bolds and plastic end caps to fit to the wires on the bike.

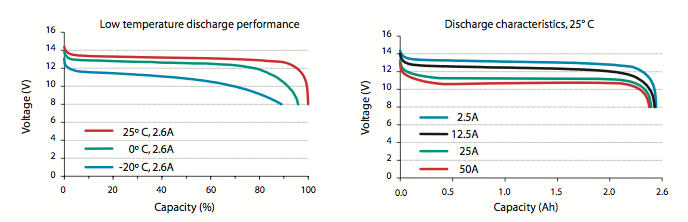

Discharge
See images.
Self-discharge As super B batteries have a very low self-discharge rate, the batteries will last for several years in storage.
F.I.M. / Stock Racing
The F.I.M. modified the regulations for stock racing regarding battery use.
Article 2.7.9.5 Battery:
The Battery may be replaced. If replaced, its nominal capacity must be equal to or higher than the Homologated type. The F.I.M. has approved the super B battery for use as replacement battery.
Technical specifications
Nominal capacity and voltage 2600 mAh, 13.2 V
Recommended standard charge method 4A to 14.4 CCCV, 45 min
Recommended fast charge current 10A to 14.4 CCCV, 15 min
Maximum continuous discharge 50A
Pulse discharge 150A
Recommended charge and cut-off V at 25°C 14.4V to 8V
Recommended charge and cut-off V below 0°C 15.2V to 2V
Operating temperature range -22°F to +140°F / -30°C to +60°C
Storage temperature range -58°F to +140°F / -50°C to +60°C
Battery weight 1.05 lb / 475 grams;
