SmartyCam3 GP HD84 video camera

1.800,00 excl. VAT

SCHD3GP-084~
SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera

SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera
SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera
SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera
SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera
SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera
SmartyCam3 GP HD84 video camera
Click to enlarge
SmartyCam3 GP HD84 video camera

Product Details

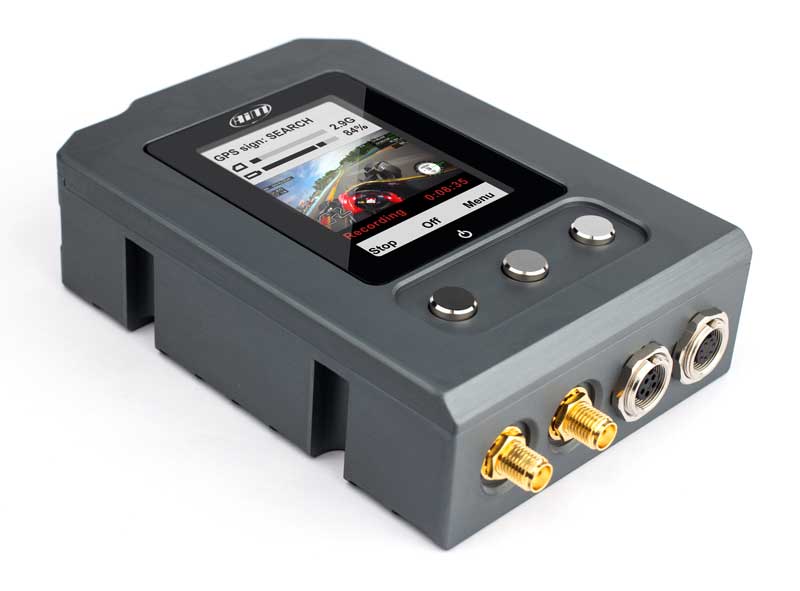

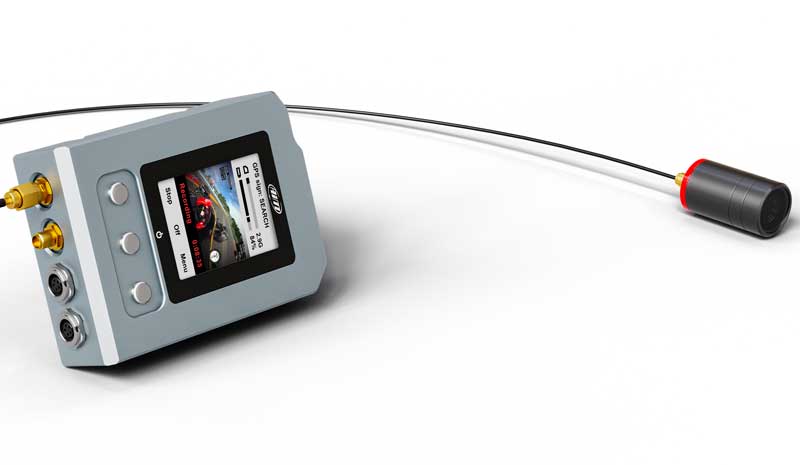

AIM SmartyCam3 GP HD 84 video camera with display


The AIM Smartycam3 GP HD video camera is the only camera developed especially for motorsports. High quality HD video's with all data needed to perfectly analyse your performance on track. The most robust and reliable action camera ever!

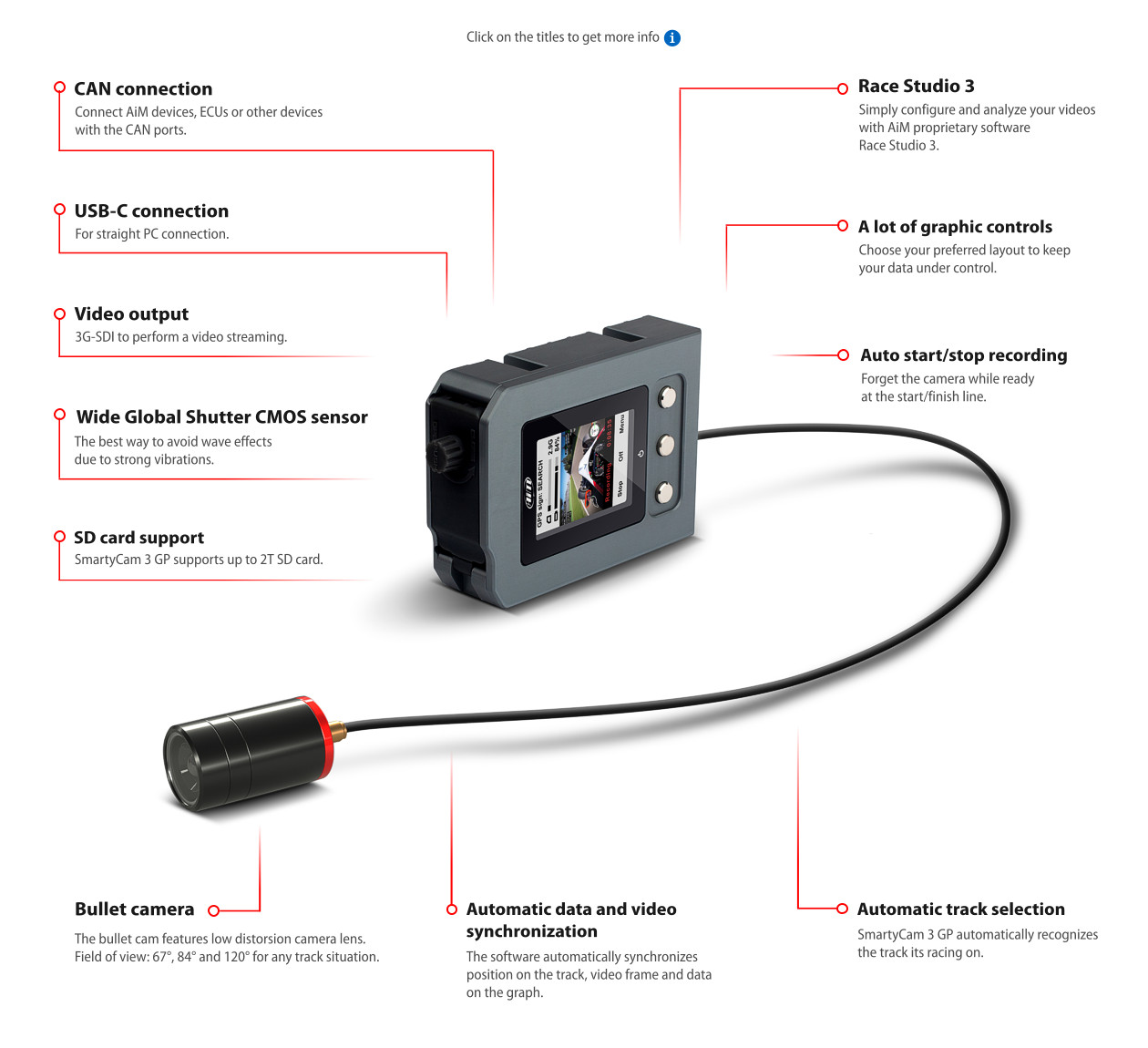

The AIM SmartyCam3 HD GP has 84 wide angle lens and the unique "Global shutter CMOS sensor" and low distortion camera lens. This means that every frame is recorded in one time instead of pixel by pixel as done in regular action camera's. AIM Smartycam3 GP HD never has a wave effect because of this.

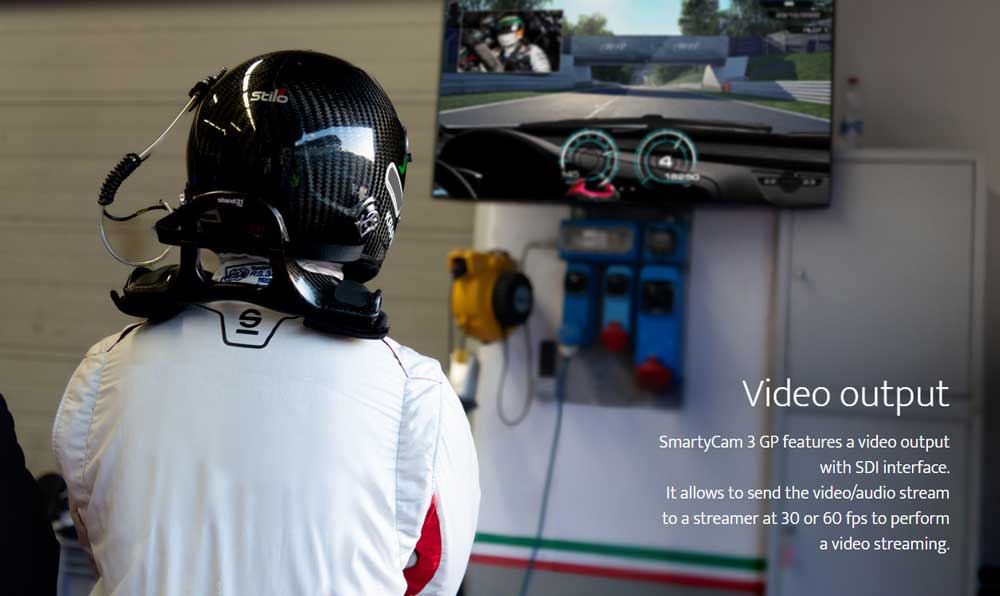

Smartycam3 GP even has a video output with SDI interface which allows to send the video/audio stream to a streamer at 30 or 60 fps.
The camera can automatically start and stop the recording so you do not need to worry about starting your camera on the grid. The camera can even power itself on when it is connected to an AIM datalogger. The Smartycam 3 GP records HD quality video's with data overlay. The layout of the data overlay can be created by yourself according to your desires.

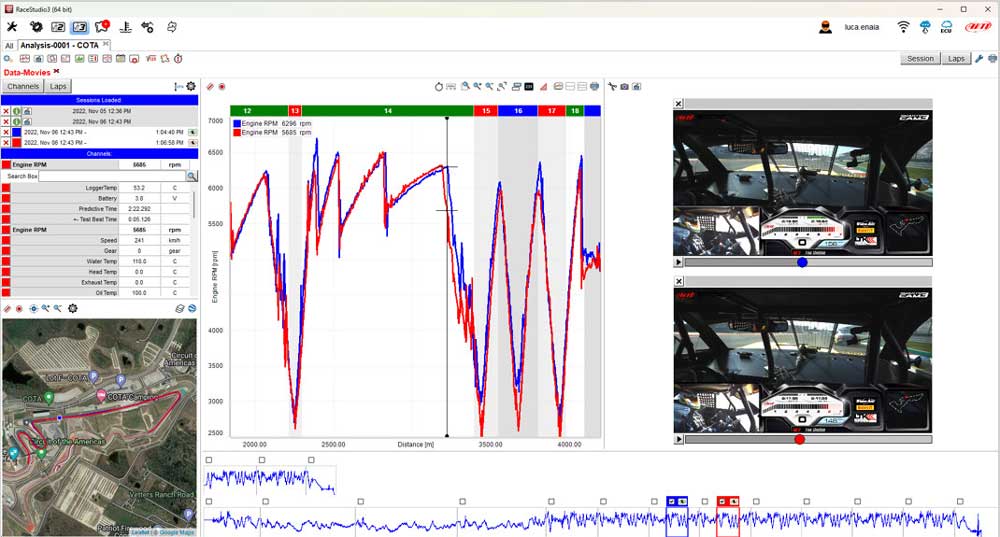

Videos can be analyzed in Race Studio3 together with recorded data from internal sensors, ecu data (when connected) and data from an AIM datalogger (when connected).

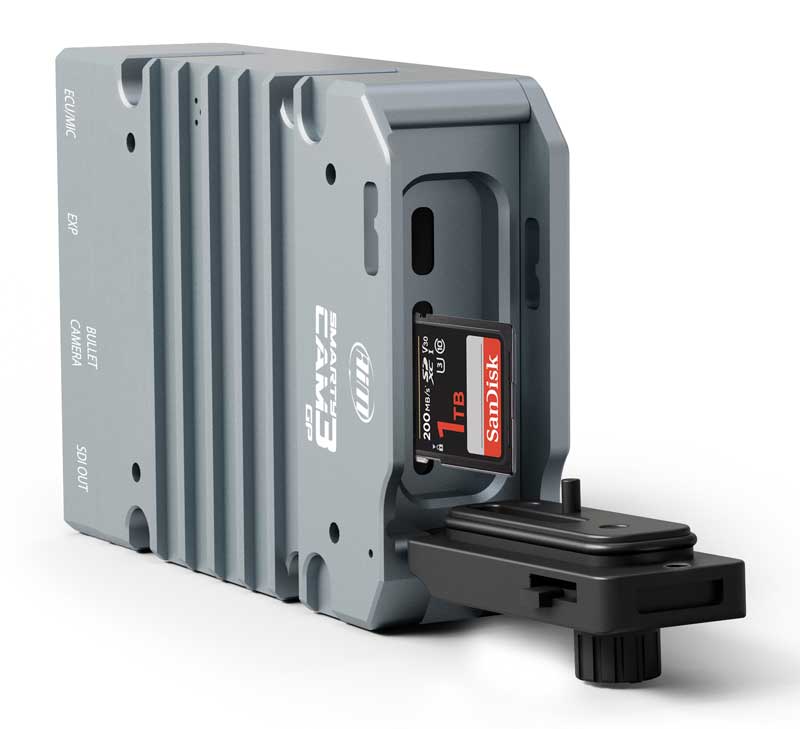

The SmartyCam 3 GP HD has an internal battery and a SD memory card slot. The AIM SmartyCam 3 GP HD will be delivered incl. CAN connection cable (choose the correct length at the options below), USB C cable and 2m bullet cable.

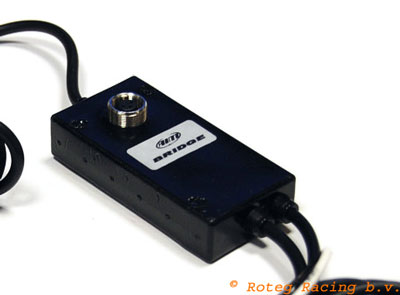

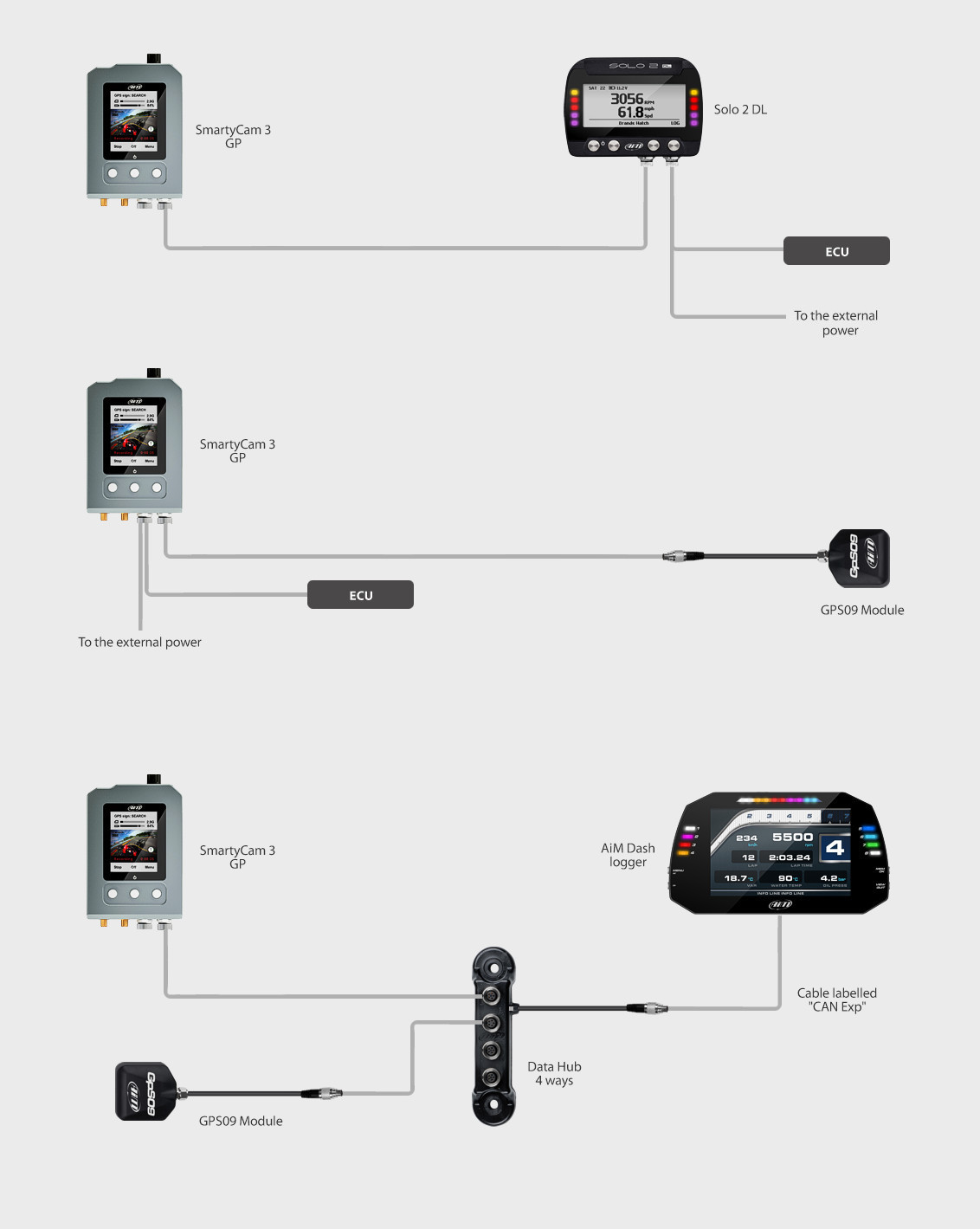

It is even possible to show the track layout in the video. The position of the vehicle will be shown on the track layout. The AIM SmartyCam3 GP HD can show it's full potential when it is connected to an AIM datalogsysteem (MyChron 5, Evo5, Evo4S, MXS, MXm, MXP, MXG, Solo 2 DL, ECU bridge etc.).
You can easily create your overlay with the AIM Race Studio 3 software (see Downloads tab).

Technical data:
-Video format: H.264 1920 x1080 pixels @ 60 fps
-Dimensions display module: 120.8 x 80.2 x 30.9 mm
-Dimensions bullet camera: diameter 24mm, length 51.1mm -Display resolution: 2.4", 240x320 pixels
-84 wide angle lens
-USB C port
-CAN ECU connection port
-3G SDI video output port
-AIM CAN connection port
-SD kaart up to 2 TB
-rechargeable Internal lithium battery
-External power: 9-15 V
-Weather resistance: IP65
-Weight: display module 320 gram, bullet 45 gram

AIM Sportline - Racing Data Power


Downloads


Race Studio 3
Race Studio 3.12.06 MC5-MXL2-MXS-MXG (11-11-2016) ->RaceStudio3_31206_028958_004531_20161111_110024.exe

More info


Bruto gewicht 0.640 kg

Netto gewicht 0.365 kg
Available Options:
Bullet camera cable length: ( Please select your desired option using the buttons provided. Click the images to enlarge.)
200 cm
CAN connection cable: ( Please select your desired option using the buttons provided. Click the images to enlarge.)
200 cm CAN cable
400 cm CAN cable
Write Review
   Accessoires  Model   Product Name+   Price   Buy Now
 Camera mount V-block, suitable for SmartyCam   SCRAM-B101U-UE1   Camera mount V-block, suitable for SmartyCam   69,00 excl. VAT  TEXT_BUYCamera mount V-block, suitable for SmartyCamTEXT_NOW
 Fork stem base for motorcycle   SCRAM-B-342U   Fork stem base for motorcycle   20,95 excl. VAT  TEXT_BUYFork stem base for motorcycleTEXT_NOW
 Mounting ball 1/4" round, fits on Smartycam camera   SCRAP-B-366-U   Mounting ball 1/4" round, fits on Smartycam camera   10,95 excl. VAT  TEXT_BUYMounting ball 1/4" round, fits on Smartycam cameraTEXT_NOW
 Mounting ball with strip and 2x 6 mm hole   SCRAM-B-309-1U   Mounting ball with strip and 2x 6 mm hole   12,95 excl. VAT  TEXT_BUYMounting ball with strip and 2x 6 mm holeTEXT_NOW
 RAM Camera mount flat round, suitable for SmartyCam   SCRAM-B101A237U   RAM Camera mount flat round, suitable for SmartyCam   39,95 excl. VAT  TEXT_BUYRAM Camera mount flat round, suitable for SmartyCamTEXT_NOW
 RAM mounting clamp aluminum, length 130 mm   SCRAM-B-201U-C   RAM mounting clamp aluminum, length 130 mm   26,00 excl. VAT  TEXT_BUYRAM mounting clamp aluminum, length 130 mmTEXT_NOW
 Roll bar bracket set for Smartycam HD GP record unit   SCRAM-B-DH-RB   Roll bar bracket set for Smartycam HD GP record unit   92,00 excl. VAT  TEXT_BUYRoll bar bracket set for Smartycam HD GP record unitTEXT_NOW
We Also Recommend :

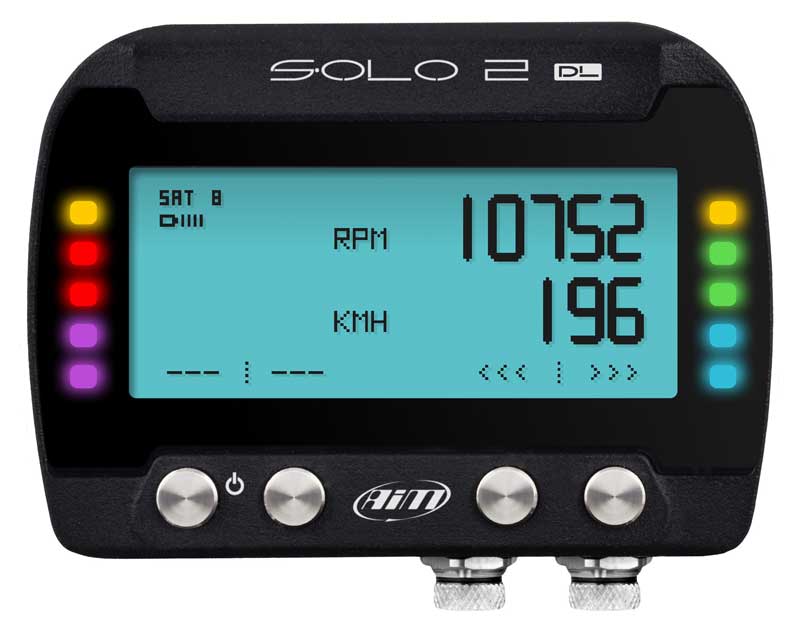

AIM Solo2 DL GPS laptimer datalogger + RPM-ECU connection
AIM Solo2 DL GPS laptimer datalogger + RPM-ECU connection
750,00 excl. VAT
Buy 1 'AIM Solo2 DL GPS laptimer datalogger + RPM-ECU connection ' now
AIM ECU interface OBD for AIM SmartyCam camera and dashboard
AIM ECU interface OBD for AIM SmartyCam camera and dashboard
300,00 excl. VAT
Buy 1 'AIM ECU interface OBD for AIM SmartyCam camera and dashboard' now
AIM MXP 6" TFT colour dash datalogger kit + GPS-08 module
AIM MXP 6" TFT colour dash datalogger kit + GPS-08 module
2.600,00 excl. VAT
Buy 1 'AIM MXP 6" TFT colour dash datalogger kit + GPS-08 module' now

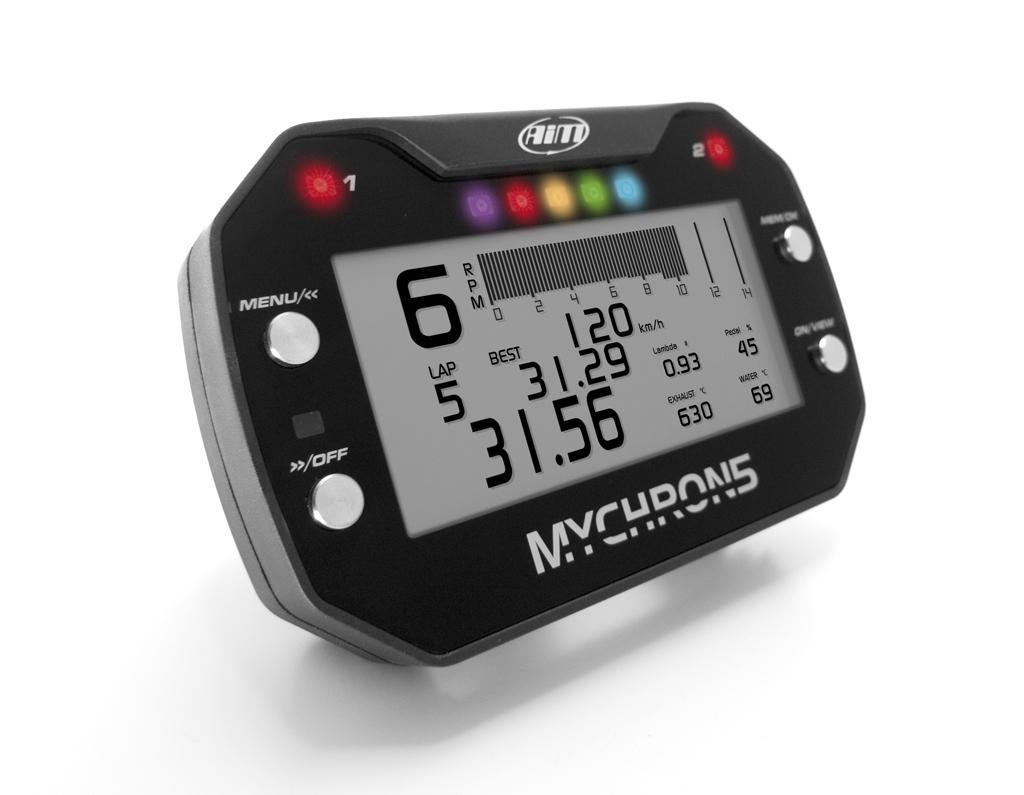

AIM MyChron 5-S Kart GPS kart laptimer standard kit
AIM MyChron 5-S Kart GPS kart laptimer standard kit
475,00 excl. VAT
Buy 1 'AIM MyChron 5-S Kart GPS kart laptimer standard kit' now

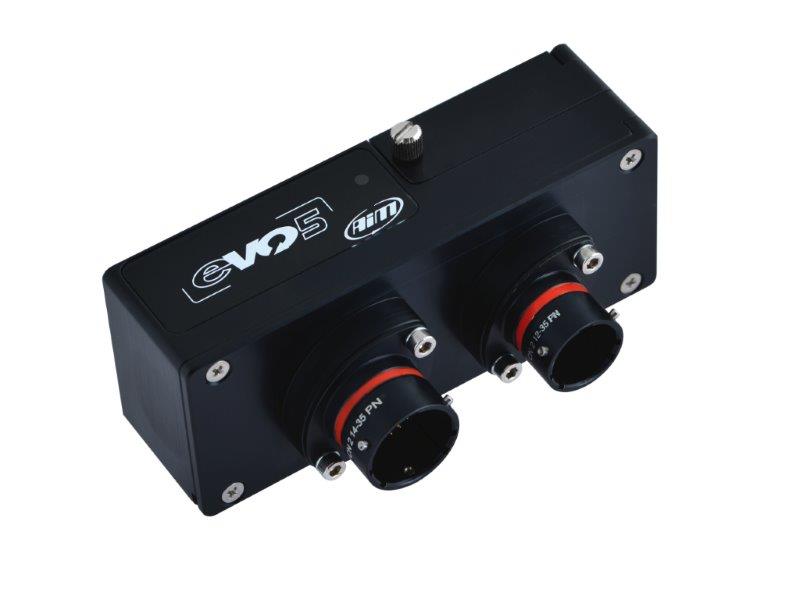

AIM Evo5 GPS 8 channel data logger kit
AIM Evo5 GPS 8 channel data logger kit
1.900,00 excl. VAT
Buy 1 'AIM Evo5 GPS 8 channel data logger kit' now

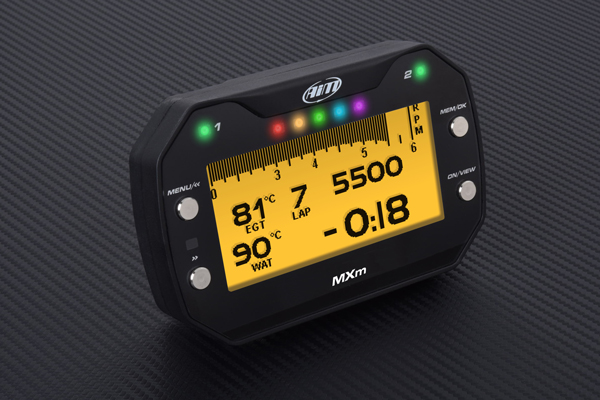

AIM MXm datalogger GPS dash kit incl. 37-pole wiring loom
AIM MXm datalogger GPS dash kit incl. 37-pole wiring loom
1.220,00 excl. VAT
Buy 1 'AIM MXm datalogger GPS dash kit incl. 37-pole wiring loom' now

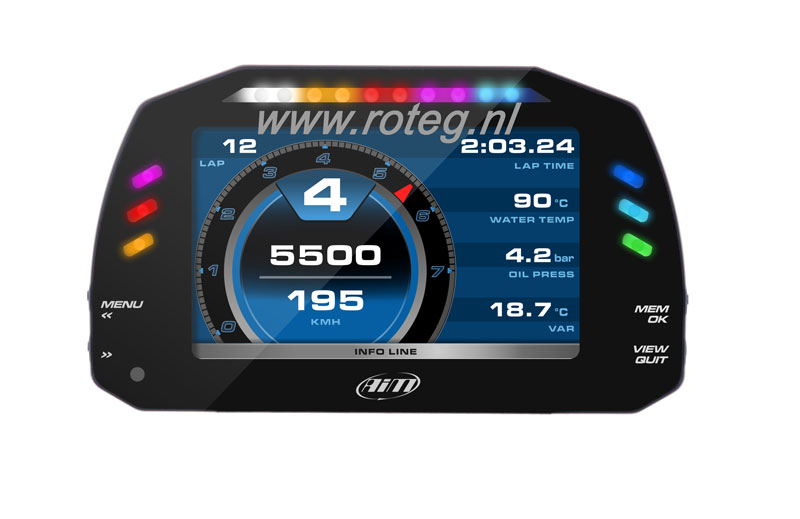

AIM MXS 1.2 5" race color dash datalogger incl. GPS module
AIM MXS 1.2 5" race color dash datalogger incl. GPS module
2.450,00 excl. VAT
Buy 1 'AIM MXS 1.2 5" race color dash datalogger incl. GPS module' now

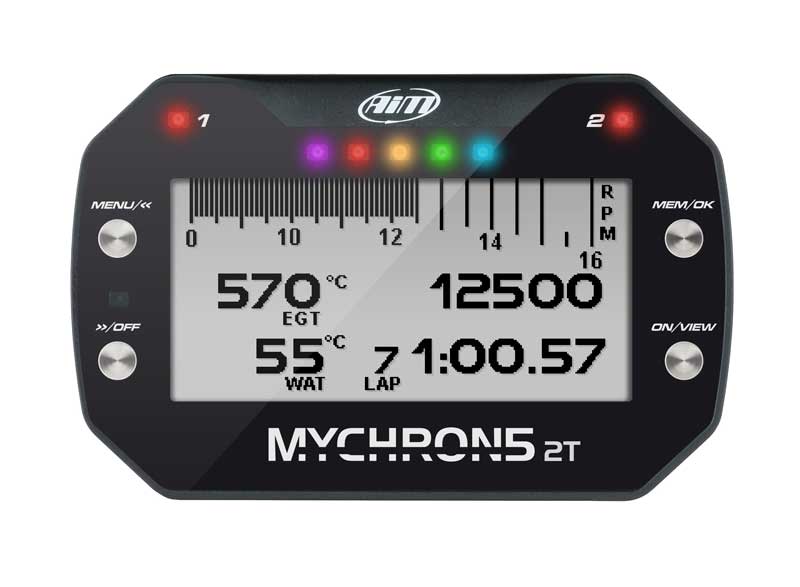

AIM MyChron 5S 2T Kart GPS laptimer standard kit
