Product Details

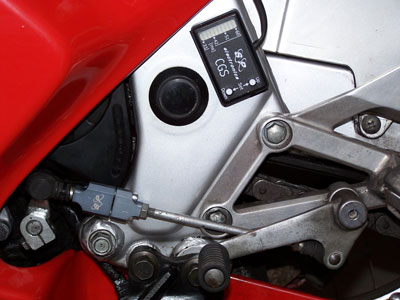

SP Quickshift kit with M6 push or pull rod sensor (choose push type when the rod is pushed during upshift and choose pull type when the rod is pulled during upshift). Suitable for many 4-stroke bikes with battery ignition and pickup sensor on crankshaft. For some modern Suzuki and Kawasaki bikes and bikes with Power commander or Rapid Bike it is necessarry to use the quickshift kit with digital Triker.
The quickshifter cuts the ignition shortly during upshift and therefore it is not needed to close the throttle during upshift. This saves time, the engine responds better (air flow is not disturbed) and it is better for the gear box. Dimensions quickshift module: 58x35x16 mm. Dimensions sensor: width 22 mm, thickness 10 mm and length 46 mm. Sensor has M6 left thread on onde side and M6 right thread on other side. The sensor has an anodised aluminium body. The set is supplied including wiring, sensor and manual.
It is also possible to connect a shiftlight or a gear indicator to this quickshifter. See accessories.
Video:
-configuring the module (
Click here for the video)
This quickshifter kit has been tested and works quaranteed on the bikes mentioned below. For most of these bikes we can also supply you the wire colors to which the quickshifter needs to be connected.
-Honda CBF600/CBF600N: 2004 t/m 2009
-Honda CBR600RR: 2003 t/m 2009
-Honda CB1000R: 2003 t/m 2009
-Honda CBF1000: 2006 t/m 2009
-Honda CBR1000RR: 2004 t/m 2009
-Honda CB1300: 2003-2009
-Kawasaki ZX-6R/ZX-6RR: 2004 t/m 2008
-Kawasaki ZX-10R: 2004 t/m 2007
-Kawasaki Z1000: 2004 t/m 2009
-Kawasaki Z750/Z750S: 2004 t/m 2009
-Yamaha YZF-R6: 2003 t/m 2009
-Yamaha FZ6/S2: 2004 t/m 2009
-Yamaha FZ6 Fazer/S2: 2004 t/m 2009
-Yamaha YZF-R1: 2001 t/m 2009
-Yamaha XJR1300: 2004 t/m 2009
-Yamaha FZ1/S2: 2006 t/m 2009
-Yamaha FZ1 Fazer/S2: 2006 t/m 2009
